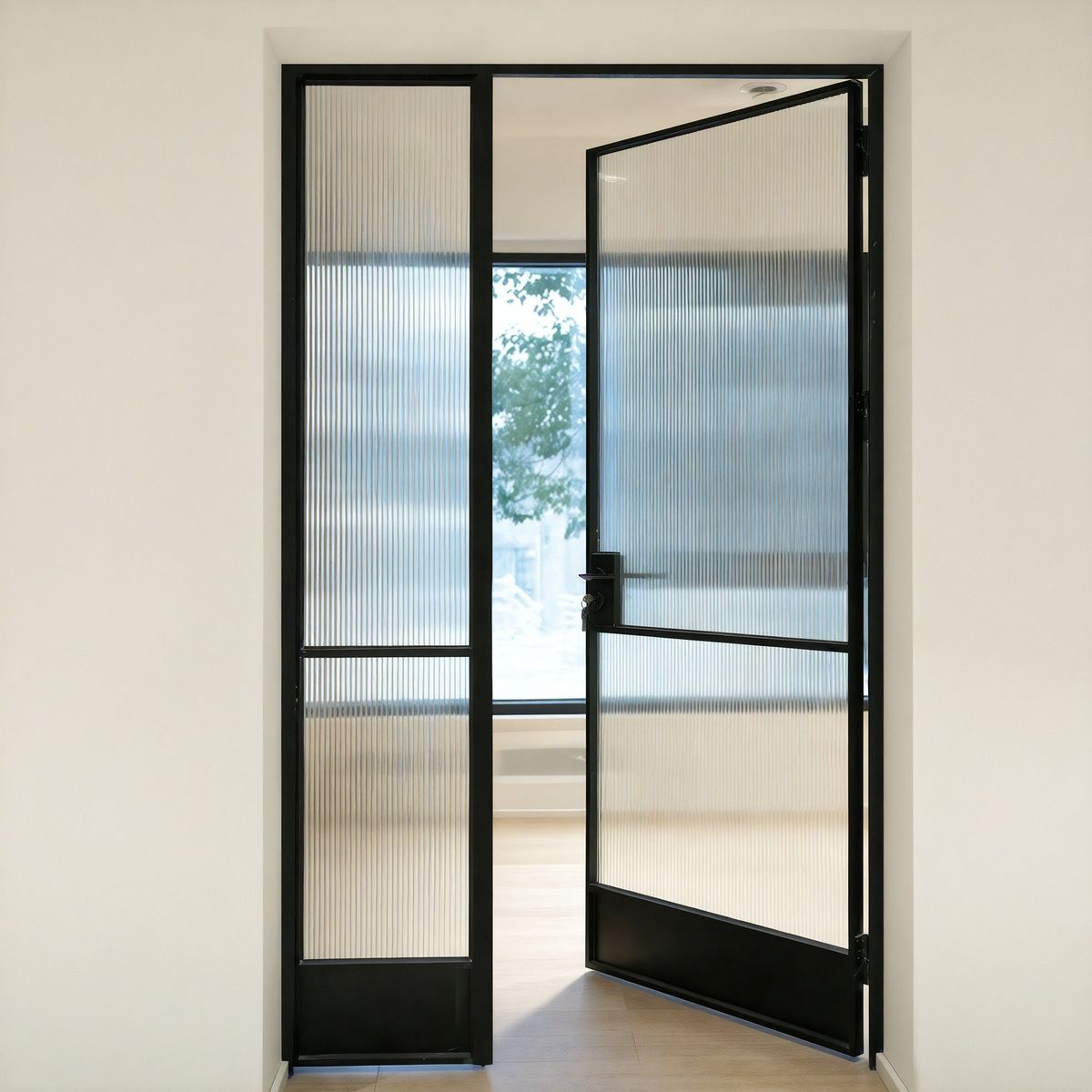

The Tempered Aluminum Alloy Ultra-narrow Single-glass Casement Door is a high-end interior door designed specifically for modern minimalist and light luxury spaces.
Featuring ultra-narrow frames, excellent light transmission and sturdy durability as its core advantages, it is perfectly suitable for bathrooms, kitchens, bedrooms, studies, balconies and other scenarios. While functioning as a space partition, it maximizes visual extension and natural lighting, redefining the aesthetics of minimalist space.

Application Scenarios of Aluminum Alloy Ultra-Narrow Casement Door
Bathroom: Waterproof and moisture-proof, balancing privacy and light transmission, solving lighting issues in small spaces.
Kitchen: Blocks oil fumes while maintaining visual connectivity, making the kitchen and dining area more spacious.
Bedroom / Study: Sound-insulating and quiet, simple and elegant, creating a peaceful and comfortable private space.
Balcony / Cloakroom: Maximizes natural light, enhancing the delicacy and openness of the space.
Specifications of Aluminum Alloy Ultra-Narrow Casement Door

| Item | Details |
|---|---|
| Product Name | Aluminum Alloy Ultra-Narrow Single-Glass Casement Door |
| Profile Material | 6063-T5 Primary Aluminum Alloy |
| Profile Thickness | Sash: 1.8–2.0mm, Frame: 1.4mm |
| Visible Sash Width | 16mm / 18mm (optional) |
| Outer Frame Width | Single-side trim: 65mm, Double-side trim: 50mm, Full trim: 32mm |
| Wall Occupation Width | 50–65mm |
| Glass Specification | 8mm Automotive Grade Tempered Glass (3C Certified) |
| Glass Options | Clear, Frosted, Changhong, Oil-frosted, Wire-meshed, Embossed |
| Opening Style | Inward opening, Outward opening (left / right optional) |
| Hinge Type | Pivot Hinge, Concealed Hinge, Standard Hinge (optional) |
| Lock Configuration | Magnetic Silent Lock, Flat Stud-free Lock (matching color available) |
| Weatherstripping | EPDM Environmental Protection Seal Strip |
| Surface Finish | Porcelain Coating, Fluorocarbon Spraying, Skin Glaze, Brushed |
Core Advantages of Aluminum Alloy Casement Door
Minimalist Ultra-Narrow Frame Design for Boundless VisionThe visible sash width of the Aluminum Alloy Casement Door is only 16–18mm, with the outer frame as narrow as 32–45mm. Abandoning the heavy frames of traditional doors and windows, it features clean and slender lines to maximize glass area, making the space more open and transparent. It perfectly matches mainstream decoration styles such as modern minimalist, Nordic and light luxury.
Single-Glass Configuration for Practicality & TransparencyThe Aluminum Alloy Casement Door is equipped with 8mm tempered glass (3C certified) as standard. Optional styles include clear, frosted, Changhong, oil-frosted, wired glass and more, with a light transmittance of up to 92%, balancing lighting and privacy. The glass features high impact resistance and forms obtuse particles when broken, ensuring safe use.
Excellent Sealing & Sound Insulation PerformanceThe Aluminum Alloy Casement Door adopts eco-friendly EPDM weatherstripping with a three-level sealing structure. It achieves air tightness Grade 6–8, water tightness Grade 5–6 and sound insulation of 35–36dB, effectively blocking noise, moisture and dust. It delivers outstanding waterproof and moisture-proof performance in bathrooms and kitchens.
High-Quality Hardware for Smooth OperationThe Aluminum Alloy Casement Door comes standard with 304 stainless steel pivot hinges / concealed hinges (standard hinges optional), featuring strong load-bearing capacity to prevent sagging and jamming. Paired with flat stud-free magnetic locks / GEAN locks, it operates silently, locks securely, and offers a simple, elegant appearance with smooth hand feel.
