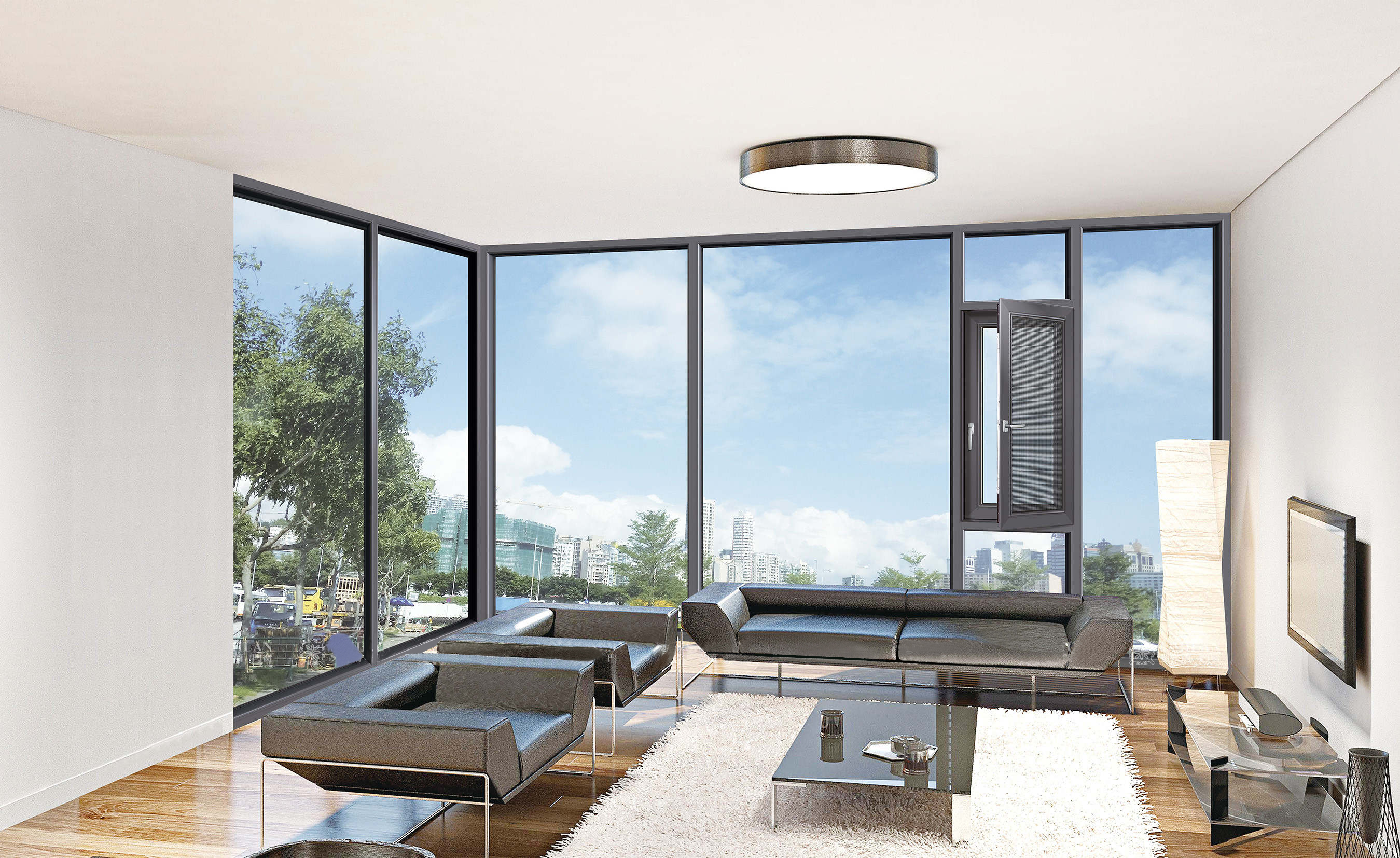

Airtight Aluminum Alloy Casement Window: Product Introduction
The Airtight Aluminum Alloy Casement Window is a high-performance window system featuring a high-strength aluminum alloy frame and a horizontal, side-hung opening mechanism. It stands as a mainstream window type for both modern residential and commercial buildings.
Integrating superior sealing, energy efficiency, security, and aesthetic appeal, the Airtight Aluminum Alloy Casement Window offers distinct advantages—particularly in terms of ventilation, sound insulation, and thermal insulation—when compared to traditional sliding windows.

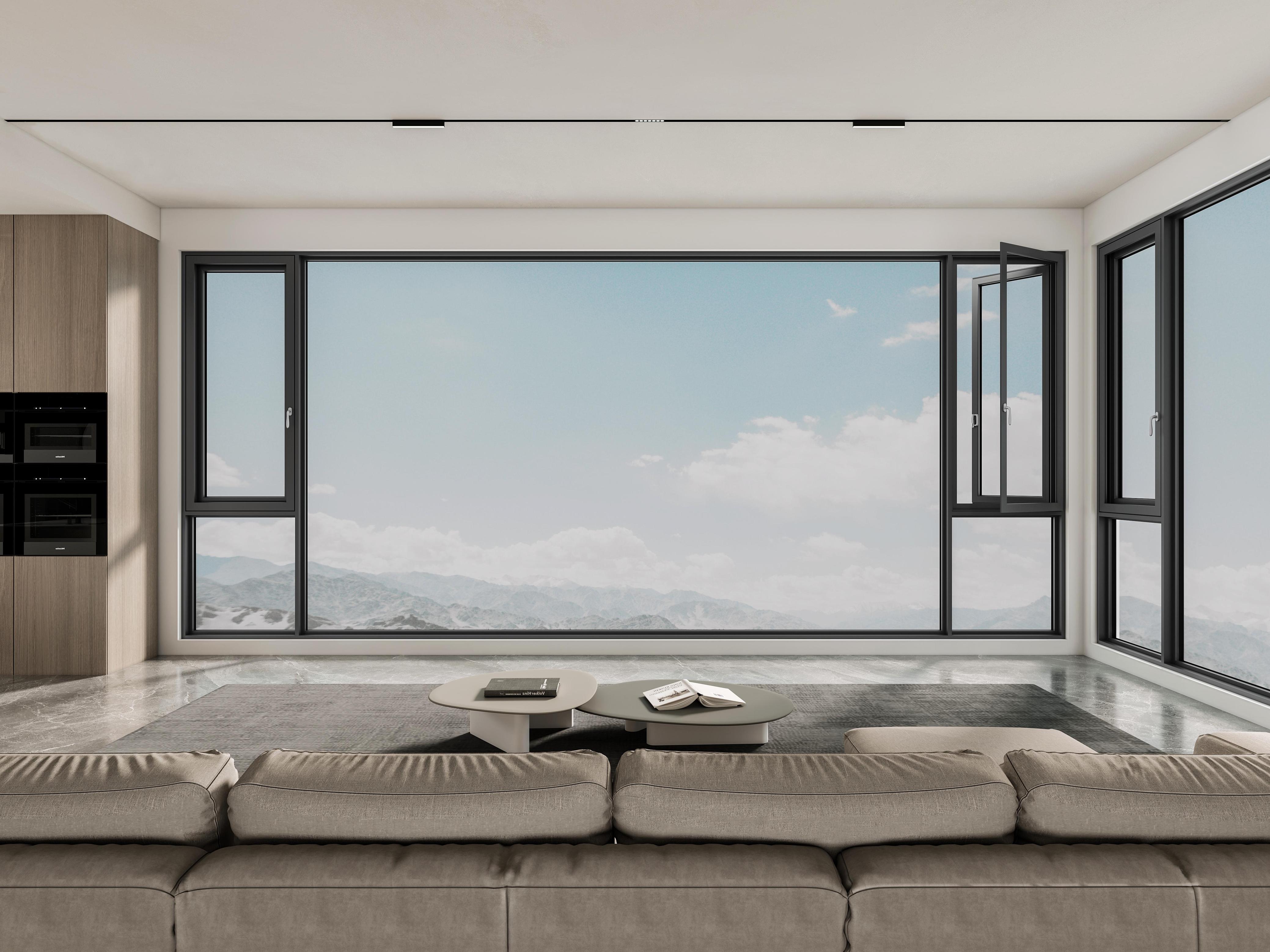

Key Performance Advantages of Panoramic Aluminum Alloy Casement Windows:
1. Panoramic aluminum alloy casement windows boast exceptional airtightness; the frame and sash fit together tightly, and a multi-layer sealing system ensures that no water or drafts penetrate—even during stormy weather.
2. These windows are highly energy-efficient: they minimize heat loss in the winter and block external heat waves in the summer, thereby reducing air conditioning energy consumption.
3. Featuring noise-reducing insulated glass combined with a robust sealing structure, these windows ensure a quiet indoor environment—even in locations adjacent to busy streets or highways.
Heavy-Duty Aluminum Alloy Casement Window — Product Specifications
| Item | Standard Parameters |
|---|---|
| Profile Series | 50/55/60/70/80/108/115 Series |
| Profile Wall Thickness | 1.4mm (standard), 1.6/1.8mm (high-end) |
| Wind Pressure Resistance Grade | Grade 8–10 |
| Air Tightness Grade | Grade 6–8 |
| Water Tightness Grade | Grade 4–6 |
| Sound Insulation Performance | 30–40dB |
| Heat Transfer Coefficient (Thermal Break) | 2.0–2.8W/(㎡·K) |
| Service Life | 30–50 years |
| Opening Style | Outward opening, inward opening, inward opening & inward tilting |
Airtight Aluminum Alloy Casement Window: Product Details
01 Titanium-Magnesium Aluminum Alloy
This airtight casement window is crafted from a titanium-magnesium aluminum alloy, characterized by its low density, high structural strength, resistance to fluctuations in temperature and humidity, and excellent corrosion resistance.
02 Thickened Frame Hinges
The casement window features thickened hinges with a pure copper load-bearing core. Equipped with full-steel, true ball bearings, these hinges ensure smooth, effortless operation and excellent flexibility for the window over the long term.
03 EPDM Sealing Strips
The sealing channels of the casement window utilize EPDM (Ethylene Propylene Diene Monomer) sealing strips. These strips are highly wear-resistant, resistant to aging, and provide comprehensive sealing for superior waterproofing and sound insulation.
04 Foldable Design for Enhanced Space
The foldable design creates a more expansive and open living space, allowing for an unobstructed, panoramic view of the outdoor scenery.
05 Premium Hardware Handles
Featuring carefully selected, high-quality zinc alloy handles, this window offers extended service life, a minimalist yet stylish aesthetic, and exceptional resistance to corrosion.
